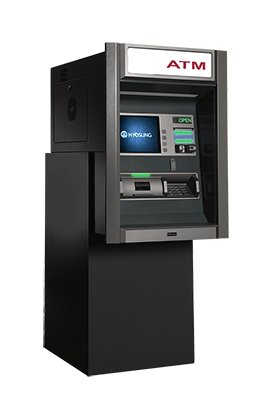

Monimax 5100T(NH-5040) can be upgraded with additional features and security: Monimax 5100T provides optional modules such as sunlight viewable LCD display,maximum 4 cassettes, electronic or cencon lock and 5.7" supervisor display. Monimax 5100T ensures the complete security for the cardholder and financial institution with triple DES EPP, UL291 business hours and optional UL291 level 1 safe, and voice guidance system to meet ADA requirements.The optional remote monitoring system provides highly efficient management functions and true real time monitoring.

Powerful Performance

A Windows® open platform can handle any application software based on a WOSA/XFS platform. Opt for decreased transaction time, multi-media advertisements, and other advanced services and functions.


Walk-up, drive-up, through-the-wall, and free-standing kiosk-all are available with the Monimax 5100T. It features a small footprint and compact architecture that offers flexible options at an affordable price.

Small Size, Large Display

An optional 10.4" sunlight-viewable color display is designed to perform clearly-inside or outside.



System Control

  • Intel® Pentium®-IV processor

  • Microsoft® Windows XP® platform

Customer Display

  • 10.4" color TFT LCD

  • sunlight viewable


  • TCP/IP or Dial-up

Input Type

  • 4 x 2 function keys

  • 4 x 4 numeric keys

  • PCI EPP (Encrypting PIN pad)

  • ADA compliant

Card Handling

  • Dip-type card reader

  • IC card reader, EMV Level 1, 2

Cash Dispensing

  • 2,000-note cassette

  • Up to four cassettes

  • Note-by-note rejection


  • 3.1" graphical thermal receipt printer


  • UL291 Business hours

  • Standard mechanical safe lock

  • Voice guidance system

  • UL291 Level 1

  • KABA Mas Cencon safe lock

  • electronic safe lock

  • key-combo safe lock

Power Supply

  • AC 110-230V, 50-60 Hz

Operating Environment

  • Temperature: 32°F-104°F

  • Tolerance: 14°F-104°F

  • Humidity: 25%-86%

Dimension and Weight

  • Height: 59.4" (1509.5 mm)

  • Width: 23.6" (600 mm)

  • Depth: 32.6" (828 mm)

  • Weight: 441.5 lbs (200 kg)

Supervisor Operation

  • 2 lines of 10 characters/line LCS

  • Portable type, 16 keys
