MX5600 HIGH END LOBBY ATM

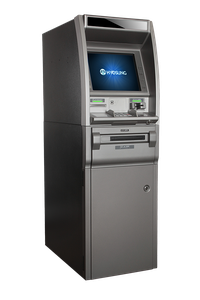

High End Lobby ATM - MX5600

Innovative design ofMX5600brings customer's attention with an elegant exterior, ease of use and ergonomic design. 15"TFT LCD provides unsurpassed convenience to customers and Vacuum Fluorescent Display(VFD) maximizes advertising effect.

With high-capacity receipt journal and cassettes, the MX5600 can be deployed both on and off premise.

MX5600 features superior and cost-effective performance will outshine all of its competitors.

Specifications



System Control
     • Intel® Pentium® IV processor
     • Microsoft® Windows® XP platform
     • NDC+, DDC912, User Application
Communication
     • TCP/IP (SSL configurable)
Optional
     • Dial-up, Wireless, X.25
Customer Display
     • 15" color TFT LCD
Optional
     • Privacy filter
     • Sunlight readable
Input Type
     • 4x2 function keys
     • PCI EPP (Encrypting PIN Pad)
     • ADA compliant
Card Handling
     • Dip-type card reader
Optional
     • IC card reader
 EMV Level 1, 2 compliant
     • Anti-skimming
     • Motor-driven card reader
Cash Dispensing
     • 3,000 notes cassette
 (Up to 4 cassettes)
     • Bundle retraction
     • Automatic shutter

Printers
     • 3.1" graphical thermal receipt printer
     • Electronic journal
     • 5,000 transactions
Optional
     • Journal printer
Security
     • UL291 Level 1 safe
     • Mechanical combination lock
Optional
     • Electronic safe lock
     • KABA Mas Cencon safe lock
     • Security camera
Miscellaneous
     • Lead-through indicator
Optional
     • VFD (Vacuum Fluorescent Display)
     • Heater
Power Supply
     • AC 110 – 240V, 50–60Hz
     • Backup battery
Operating Environment
     • Temperature: 31°F – 104°F ( 0°C – 40°C)
Optional
     • Humidity: 25%–85%
Dimension and Weight
     • Height : 59.3" (1,505 mm)
     • Width : 18.5" (470 mm)
     • Depth : 29.9" (760 mm)
     • Weight : 978 lbs (444 kg)
Internal components may change with the
introduction of new technology. Nautilus Hyosung
reserves the right to change the specifications of
this ATM to accomodate the changes in technology
