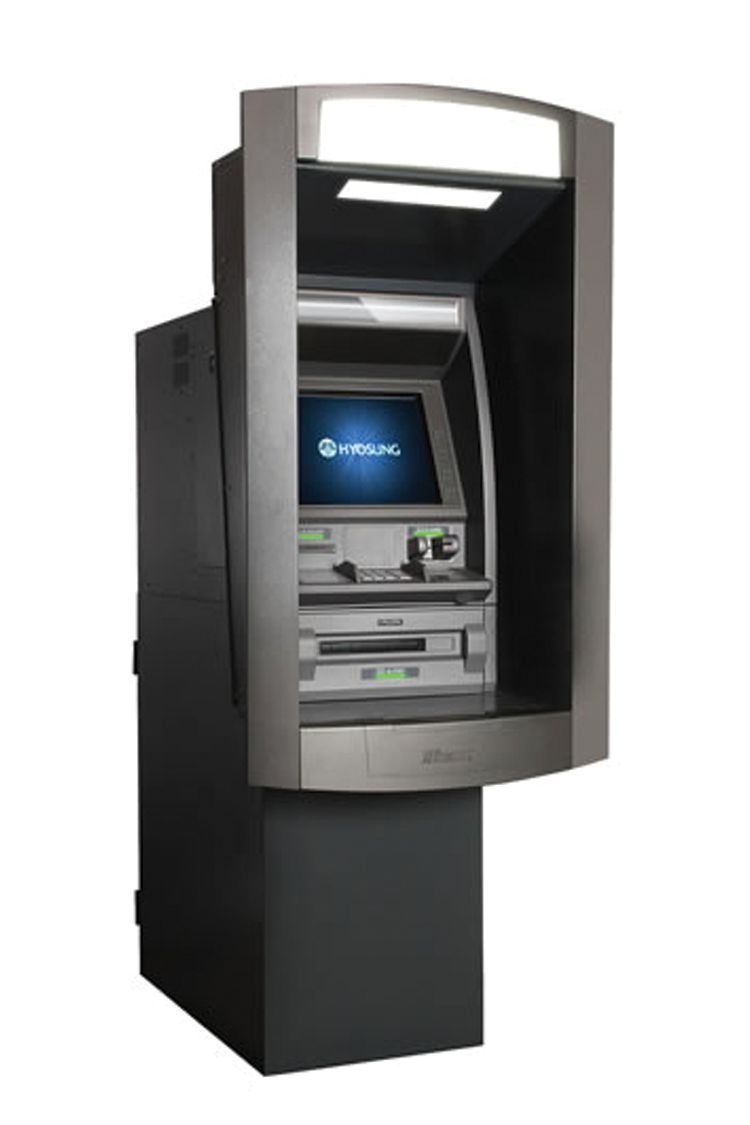

MX5600T THROUGH THE WALL ATM
The MX5600T offers complete deployment flexibility and a broad range on non-traditional service offerings. The 5600T offers best in class reliability, security and high capacity. This ATM can easily scale up after installation to suit growing demand.
The MX5600T is designed to provide reliability that is second to none in the market, with the highest uptime and with minimum maintenance needs.
Availability is over 99% and less than 1% overnight downs.
Designed with open architecture platform allowing for easy future upgrades and module modifications.
The Modular design is one of ways in which we are trying to save our customers' cost and provide maximum convenience.
The 5600T features a small footprint and compact design.
High capacity cash dispense capability and the ability to support large volume transactions.
The 5600T functionality includes bill payment, funds transfer, and mobile top-up in a highly user-friendly interface for maximum convenience.
Hyosung ATMs support both physical and logical defenses against a variety of attacks. Multi-level anti-skimming, locked down operating system, white-listing, and encryption combine for a formidable defense.
Weight: 1023 lbs
Temperature: 32°F – 104°F (0°C~ 40°C)
With Heater: -24°F – 104°F
Humidity 25% – 85%
Microsoft® Windows® 7
15” TFT LCD (1024 X 768), sunlight viewable
PIN Pad – PCI EPP T-DES,
ADA Audio Guidance –
Available with earphone jack,
Card Reader – DIP Reader,
EMV level 1,2 compliant, Anti- skimming
- 3,000 notes per cassette
- Up to 4 cassettes
- Bundle present/retract
- Note by note rejection
Safes: UL 291 Level 1
Alarm – Seismic + Heat
Locking Device – Electronic Safe
Lock, KABA Mas Cencon
Security – Terminal Block
Key Lock – Common Key
Sensor – Safety Door Sensor
(Cherry or Magnetic)
State of health indicators across
Thermal Line Printing – Thermal roll paper
3.1” graphical thermal receipt printer
CPU – I5-4590S 3.7 GHz (H81)
Expansion Slots – PCI 2EA, PCI Express 1X 1EA, PCI Express 16x 1EA
Serial Ports – 6 port
USB Ports – 13 Ports (USB
3.0 : 4, USB 2.0 : 9) + 7 port
USB 2.0 Hub
VGA – GT520 VGA Card
(OPL: DVI, SPL : VGA)
LAN – 10/100/1000 Mbps On-
Communication – TCP/IP
Power Supply: AC 110-240V,
50-60 Hz, Back-up battery (reserving last transaction & safe shutdown)
VFD (Vacuum Florescent Display)
1D/2D Barcode Reader
NFC – 13.56MHz ISO14443
Type A,B NFC
